Code-93 Barcode: Length, Reading, Decoding, and Advantages

The Code 93 barcode is a variable-length barcode that can encode a wide range of data, including alphanumeric characters, punctuation marks, and control characters. The length of a Code 93 barcode can vary depending on the amount of data that needs to be encoded. In this section, we will explore the minimum and maximum length of a Code 93 barcode in more detail.

Minimum Length of a Code 93 Barcode

The minimum length of a Code 93 barcode is determined by the minimum number of encoding characters required to encode the data. Each character in the Code 93 barcode is encoded using a series of nine bars and spaces, with each bar or space representing either a "narrow" or "wide" element. The minimum number of encoding characters required to encode a particular set of data can be calculated by dividing the number of bits required to represent the data by nine.

For example, if we want to encode a string of 10 numeric characters (e.g., "1234567890"), the number of bits required to represent the data would be 10 x 4 = 40 bits (since each numeric character requires 4 bits to represent). Dividing this by nine gives a minimum of 5 encoding characters. Therefore, the minimum length of a Code 93 barcode for this data would be 5 x 9 = 45 bars and spaces.

It's important to note that the minimum length of a Code 93 barcode may be increased by the inclusion of start and stop characters, checksum characters, and optional modulo-47 check characters. These characters are used to indicate the beginning and end of the barcode, verify the accuracy of the data, and provide additional error detection and correction capabilities.

Maximum Length of a Code 93 Barcode

The maximum length of a Code 93 barcode is determined by the maximum number of encoding characters that can be encoded using the barcode. The Code 93 barcode can encode up to 47 different characters, including the 26 uppercase letters, the 10 digits, and a set of special characters. Each character in the Code 93 character set is represented by a unique pattern of narrow and wide bars and spaces.

The maximum number of encoding characters that can be included in a Code 93 barcode can be calculated by dividing the total number of bars and spaces in the barcode by nine. For example, if we have a barcode that is 225 bars and spaces in length, the maximum number of encoding characters that can be included would be 225/9 = 25 characters.

It's important to note that the maximum length of a Code 93 barcode may be limited by the size of the barcode label or the scanning capabilities of the barcode reader. If the barcode label is too small or the scanning resolution of the barcode reader is too low, the barcode may not be readable or may require a longer barcode length to ensure accurate scanning.

In conclusion, the minimum and maximum length of a Code 93 barcode depends on the amount of data that needs to be encoded. The minimum length of a Code 93 barcode is determined by the minimum number of encoding characters required to represent the data, while the maximum length of a Code 93 barcode is determined by the maximum number of encoding characters that can be included in the barcode. The length of the barcode may also be influenced by the inclusion of start and stop characters, checksum characters, and optional modulo-47 check characters, as well as the size of the barcode label and the scanning capabilities of the barcode reader.

Download and Install CODE-93 Barcode Software

Reading and Decoding of CODE-93 Barcode

Code 93 is a high-density, continuous, variable-length barcode symbology that is commonly used in various applications such as inventory management, package tracking, and document management. To read and decode a Code 93 barcode, a barcode scanner is used. In this section, we will explore the process of reading and decoding a Code 93 barcode in detail.

  • Scanning the Barcode

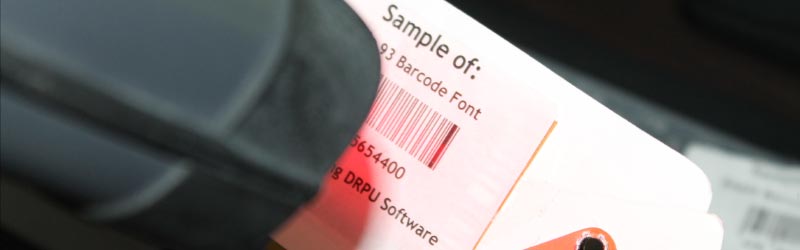

    The first step in reading a Code 93 barcode is to scan it using a barcode scanner. A barcode scanner is a device that uses a light source and a photo sensor to detect the pattern of the barcode. When the scanner is passed over the barcode, the light source illuminates the barcode, and the photo sensor detects the pattern of the barcode. The pattern is then converted into an electrical signal that is sent to the decoder.

  • Decoding the Barcode

    Once the barcode is scanned, the decoder analyzes the pattern of the barcode and converts it into the corresponding characters. The decoding process involves analyzing the width and spacing of the bars and spaces in the barcode and converting them into binary code.

  • Character Translation

    After the barcode is decoded, the binary code is translated into the corresponding characters using a character translation table. The character translation table maps each binary code to the corresponding character in the Code 93 character set.

  • Checksum Calculation

    In order to verify the accuracy of the data encoded in the barcode, the Code 93 barcode uses a checksum calculation. The checksum calculation involves adding the values of all the characters in the barcode and then dividing the total by 47. The remainder of this division is then used to calculate the checksum character.

  • Error Correction

    If the Code 93 barcode includes a Modulo-43 check character, the decoder can use error correction to identify and correct errors in the barcode. The Modulo-43 check character involves calculating a checksum for a subset of the barcode data, rather than the entire barcode. If an error is detected in the barcode, the decoder can use the checksum to correct the error.

  • Outputting the Result

    Finally, the decoded and translated characters are outputted as text on the scanner or sent to a computer or other device for further processing. The output can include the raw data encoded in the barcode, as well as any additional information such as the barcode type, date and time of the scan, and other relevant data.

In conclusion, reading and decoding a Code 93 barcode involves scanning the barcode using a barcode scanner, decoding the barcode pattern into binary code, translating the binary code into the corresponding characters using a character translation table, calculating the checksum to verify the accuracy of the data, and outputting the result as text. The process can also involve error correction, depending on whether the barcode includes a Modulo-43 check character.

Related Articles

Popular Articles

Character Encoding in CODE-93 Barcode

The Code 93 barcode is a variable-length barcode that can encode a wide range of characters, including alphanumeric characters, punctuation marks, and control characters. In this section, we will explore the character set of a Code 93 barcode in more detail.

Encoding Code-93

The Code 93 character set consists of 47 characters, including 26 uppercase letters (A-Z), 10 digits (0-9), and 11 special characters. The special characters include:

Characters Symbol
Space
Dash -
Peroid .
Dollar Sign $
Slash /
Plus Sign +
Percent sign %
Asterisk *
Ampersand &
Copyright ©
Parentheses ()

Each character in the Code 93 character set is represented by a unique pattern of narrow and wide bars and spaces. The encoding scheme used by the Code 93 barcode is a full ASCII code set that allows any ASCII character to be encoded in the barcode.

In addition to the 47 standard characters, the Code 93 barcode also includes a set of optional characters that can be used for special purposes. These optional characters include:

  • Start character:

    The start character is used to indicate the beginning of the barcode. The start character is always the character "*" (asterisk).

  • Stop character:

    The stop character is used to indicate the end of the barcode. The stop character is always the character "*" (asterisk).

  • Checksum characters:

    The checksum characters are used to verify the accuracy of the data encoded in the barcode. There are two types of checksum characters that can be used in a Code 93 barcode: Modulo-47 check character and Modulo-43 check character. The Modulo-47 check character can be used to verify the accuracy of the entire barcode, while the Modulo-43 check character can be used to verify the accuracy of a portion of the barcode.

  • Shift characters:

    The shift characters are used to switch between different character sets within the barcode. There are two shift characters that can be used in a Code 93 barcode: the Single Shift A character and the Single Shift B character. The Single Shift A character is used to switch to the alternate character set, while the Single Shift B character is used to switch back to the standard character set.

The use of these optional characters can add additional functionality to the Code 93 barcode, such as providing error detection and correction capabilities, switching between different character sets, and indicating the beginning and end of the barcode.

In conclusion, the Code 93 barcode can encode a wide range of characters, including alphanumeric characters, punctuation marks, and control characters. The barcode uses a full ASCII code set that allows any ASCII character to be encoded. In addition to the standard character set, the Code 93 barcode includes a set of optional characters that can be used for special purposes, such as error detection and correction, switching between character sets, and indicating the beginning and end of the barcode.

Advantages of using CODE-93 Barcode

Code 93 is a popular barcode symbology that offers several advantages over other barcode types. In this section, we will explore the advantages of using Code 93 barcode in detail.

  • High Density

    Code 93 is a high-density barcode symbology that can encode a large amount of data in a small space. This makes it ideal for use in applications where space is limited, such as on small items or in areas where there is limited space for labelling.

  • Wide Character Set

    Code 93 supports a wide character set, including uppercase letters, numbers, and several special characters. This makes it a versatile barcode symbology that can be used to encode a wide range of data, including alphanumeric data and special characters.

  • Compatibility with Existing Systems

    Code 93 is compatible with a wide range of existing systems, including barcode scanning software, database management systems, and inventory management systems. This makes it easy to integrate Code 93 into existing workflows and systems, minimizing the need for additional hardware or software.

  • High Security

    Code 93 includes several security features that make it difficult to counterfeit or manipulate. These security features include a checksum calculation, which is used to verify the accuracy of the data encoded in the barcode, and a Modulo-43 check character, which can be used to detect and correct errors in the barcode.

  • Easy to Print

    Code 93 is easy to print and reproduce, making it a cost-effective barcode symbology that can be used in a wide range of applications. The barcode can be printed on a variety of surfaces, including paper, plastic, and metal, using a range of printing technologies, including inkjet, laser, and thermal printers.

  • Easy to Read

    Code 93 can be easily read using a range of barcode scanners, including handheld scanners, fixed-mount scanners, and mobile devices. This makes it a versatile barcode symbology that can be used in a wide range of applications, including inventory management, asset tracking, and product labelling.

  • Variable Length

    One of the key advantages of Code 93 is its variable length. Unlike other barcode types, Code 93 can encode data of varying lengths, making it a versatile barcode symbology that can be used in a wide range of applications.

In conclusion, Code 93 offers several advantages over other barcode types, including high density, variable length, wide character set, high security, ease of printing and reading, compatibility with existing systems, and versatility.

Author: Techsavvy
Published Date:
