LOGMARS (Logistics Applications of Automated Marking and Reading Symbols) is a barcode symbology that was developed by the United States Department of Defense to improve the efficiency of their logistics and supply chain operations. LOGMARS barcodes are similar to other barcodes in that they consist of a series of vertical bars and spaces.

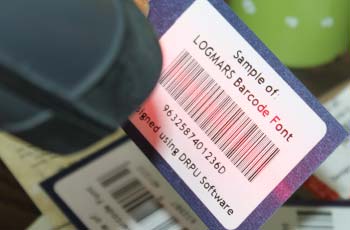

LOGMARS Barcode

Introduction of LOGMARS Barcode

LOGMARS barcodes are used to label items that are shipped to military and government organizations.

LOGMARS barcodes are specifically designed to be easily read by scanning devices even in challenging environments, such as in low light or with poor print quality.

LOGMARS barcodes are often used in conjunction with Automatic Identification and Data Capture (AIDC) technology, which allows for the automatic collection and processing of data related to logistics and supply chain management.

Structure of a LOGMARS Barcode

The structure of a LOGMARS barcode consists of a series of vertical bars and spaces that represent a specific set of characters. Each character is represented by a unique combination of bars and spaces, and the length and width of each bar and space is used to encode information.

The LOGMARS barcode symbology is based on the Code 39 barcode, which is a common linear barcode symbology. However, LOGMARS barcodes have additional requirements to ensure that they are suitable for use in the logistics and supply chain management of the US military.

The basic structure of a LOGMARS barcode is as follows:

  • Start Character: The start character is represented by the letter "A" and is used to indicate the beginning of the barcode.
  • Data Characters: The data characters represent the information that is being encoded in the barcode. The data characters consist of a combination of letters, numbers, and symbols.
  • Checksum Character: The checksum character is used to verify that the barcode has been read correctly. The checksum character is calculated based on a mathematical formula that uses the values of the data characters.
  • Stop Character: The stop character is represented by the letter "A" and is used to indicate the end of the barcode.

The LOGMARS barcode has several additional requirements that are designed to ensure that it is readable in challenging environments. For example, the barcode must be printed with high contrast ink, and the bars and spaces must be of a specific size and width to ensure that they can be accurately read by scanning devices.

Additionally, LOGMARS barcodes must be printed on a white background, and the minimum height of the barcode must be at least 0.5 inches (12.7 mm). The LOGMARS barcode must also be printed with a clear margin around the edges to prevent any interference or difficulty with the scanning process.

Conclusion: The LOGMARS barcode is designed to be easily readable in challenging environments and has several additional requirements to ensure accuracy and readability.

Applications of a LOGMARS Barcode

LOGMARS (Logistics Applications of Automated Marking and Reading Symbols) barcodes are widely used in the United States Department of Defense for the tracking and management of logistics and supply chain operations. The barcode is designed to be easily readable by scanning devices, even in challenging environments, such as in low light or with poor print quality.

There are several applications of LOGMARS barcodes in the military and government organizations.

  • Asset Tracking:

    LOGMARS barcodes are used to track the movement and location of military assets, such as vehicles, weapons, and equipment. The barcode is scanned at various checkpoints to ensure that the asset is in the right location and has been properly maintained.

  • Inventory Management:

    LOGMARS barcodes are used to manage inventory in military warehouses and supply depots. The barcode is scanned when items are received, stored, and shipped to ensure that the correct item is in the right location and the inventory is accurate.

  • Identification Cards:

    LOGMARS barcodes are used in military identification cards to store personal information about soldiers, including their name, rank, and military ID number. The barcode can be quickly scanned to verify the soldier's identity and access to secure facilities.

  • Medical Supply Chain Management:

    LOGMARS barcodes are used to manage the medical supply chain in the military. The barcode is used to track the movement and location of medical supplies, such as medicines, surgical equipment, and medical devices.

  • Transportation:

    LOGMARS barcodes are used to track the movement and location of military shipments or packages. This type of barcode is scanned at various checkpoints, including during transportation by air, land, or sea.

  • Food Supply Chain Management:

    LOGMARS barcodes are used to manage the food supply chain in the military department. The barcode is used to track the movement and location of food items, including their expiration dates and storage conditions.

  • Maintenance and Repair:

    LOGMARS barcodes are used to track the maintenance and repair of military equipment. The barcode is scanned to record the date of maintenance, the technician who performed the maintenance, and any issues or repairs that were performed.

Summary: LOGMARS barcodes have numerous applications in the military and government organizations. They are used for asset tracking, inventory management, medical supply chain management, identification cards, transportation, maintenance and repair, and food supply chain management. The barcode is designed to improve the efficiency and accuracy of logistics and supply chain operations in challenging environments.

Difference Between LOGMARS Barcode and Other Barcode Types

LOGMARS (Logistics Applications of Automated Marking and Reading Symbols) barcode is almost similar to other linear barcode types such as Code 39, Code 128, and UPC, but there are several key differences that set it apart.

  • Barcode Size and Height:

    One of the most notable differences between LOGMARS barcodes and other linear barcode types is the minimum height requirement. LOGMARS barcodes must be at least 0.5 inches (12.7 mm) tall to ensure readability in challenging environments, such as low light or poor print quality. This minimum height requirement is higher than many other linear barcode types, such as Code 39, which can be as small as 0.25 inches (6.4 mm).

  • Checksum Calculation:

    LOGMARS barcodes use a unique checksum calculation method that is different from other linear barcode types. The checksum value is calculated using a mathematical formula that is specific to LOGMARS, which helps to ensure that the barcode is read correctly and accurately.

  • Encoding:

    LOGMARS barcodes are primarily used to encode alphanumeric characters, while other linear barcode types such as UPC and EAN are designed for encoding only numeric data. This makes LOGMARS barcodes more versatile and suitable for use in a wide range of applications, including military logistics and supply chain management.

  • Printing and Labeling Requirements:

    LOGMARS barcodes have specific requirements for printing and labeling that are designed to ensure readability in challenging environments. For example, the barcode must be printed with high contrast ink on a white background, and there must be a clear margin around the edges to prevent interference with the scanning process. Other linear barcode types may have different printing and labeling requirements.

  • Application:

    LOGMARS barcodes are primarily used in the military and government organizations for logistics and supply chain management, whereas other linear barcode types are used in a wide range of industries, including retail, healthcare, and manufacturing.

Summary: LOGMARS barcodes are different from other linear barcode types due to their minimum height requirement, unique checksum calculation method, ability to encode alphanumeric characters, specific printing and labeling requirements, and primary application in military and government logistics and supply chain management.

Minimum and Maximum Length of a LOGMARS Barcode

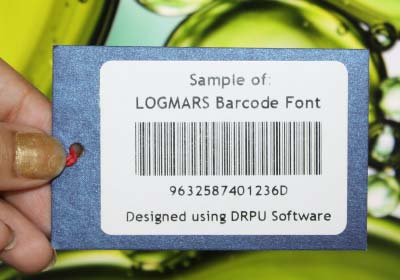

LOGMARS Barcode length

The LOGMARS (Logistics Applications of Automated Marking and Reading Symbols) barcode is used for tracking and managing logistics and supply chain operations. The barcode has specific requirements for its length, which vary depending on the type of data being encoded.

The minimum and maximum length of a LOGMARS barcode is determined by the number of characters being encoded and the type of barcode symbology being used. The most common symbology used for LOGMARS barcodes is Code 39, which allows for the encoding of alphanumeric characters.

For Code 39, the minimum length of a LOGMARS barcode is three characters (including start and stop characters), while the maximum length is 30 characters. However, the Department of Defense recommends that the maximum length be limited to 24 characters to ensure readability in challenging environments.

The length of a LOGMARS barcode is determined by the amount of data that needs to be encoded. Each character in the barcode takes up a specific amount of space, and the more characters that are encoded, the longer the barcode will be. Additionally, the barcode may need to include special characters, such as checksum digits or data identifiers, which can also affect the length of the barcode.

It is important to note that the minimum and maximum length of a LOGMARS barcode may vary depending on the specific application and requirements of the Department of Defense. For example, in certain applications, the barcode may need to include additional data fields or special characters, which can increase the length of the barcode beyond the standard limits.

Summary: The minimum and maximum length of a LOGMARS barcode is determined by the type of data being encoded and the symbology being used. For Code 39, the minimum length is three characters and the maximum length is 30 characters, with a recommended maximum of 24 characters to ensure readability in challenging environments. However, the specific requirements may vary depending on the application and requirements of the Department of Defense.

Characters Encoding in a LOGMARS Barcode

LOGMARS (Logistics Applications of Automated Marking and Reading Symbols) is a linear barcode symbology developed by the US Department of Defense for tracking and managing logistics and supply chain operations. LOGMARS barcodes are primarily used to encode alphanumeric characters, which includes letters, numbers, and some special characters.

The specific characters that can be encoded in a LOGMARS barcode depend on the symbology used. The most common symbology used for LOGMARS barcodes is Code 39, which can encode 43 characters. These characters include the following:

  • 26 uppercase letters (A-Z)
  • 10 numbers (0-9)
  • 7 special characters ($, %, +, /, ., -, and space)
  • The start and stop characters (*) and (!), respectively

In addition to these characters, Code 39 also includes a number of special characters that are used for encoding specific data. These characters include:

In addition to Code 39, LOGMARS barcodes can also be encoded using other symbologies, such as Code 128 and Interleaved 2 of 5. These symbologies may support different sets of characters or include additional special characters for encoding specific types of data.

  • Data Identifiers: Code 39 includes several special characters that are used to identify specific types of data. For example, the "/" character is used to indicate that the following data represents a shipment number, while the "+" character is used to indicate that the following data represents a serial number.
  • Control Characters: Code 39 includes several control characters that are used to signal specific functions. For example, the "*" character can be used to indicate the start of a new barcode, while the "-" character can be used to indicate that the following data should be printed in lowercase letters.
  • Checksum Digits: Code 39 includes two checksum digits that are used to verify the accuracy of the data in the barcode. These digits are calculated based on the values of the other characters in the barcode.

Conclusion: The characters that can be encoded in a LOGMARS barcode depend on the symbology used. The most common symbology used for LOGMARS barcodes, Code 39, can encode 43 characters, including letters, numbers, and some special characters. Code 39 also includes special characters for encoding checksum digits, data identifiers, and control characters. Other symbologies may support different sets of characters or include additional special characters for encoding specific types of data.
